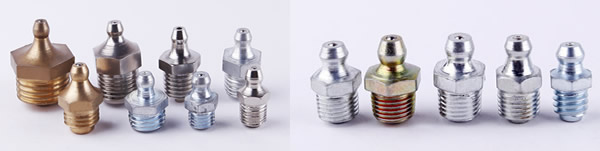

straight grease nipple
| thread | length | hex |
| M6×0.5 | 13mm | 8mm |
| M6×1.0 | 13mm | 8mm |
| PT1/8 | 18mm | 10mm |
| PT1/4 | 20mm | 14mm |
| PT3/8 | 17mm | 11mm |
| NPT1/8 | 18mm | 11mm |
| NPT1/4 | 23mm | 14mm |
| 6mm | 23mm | 14mm |

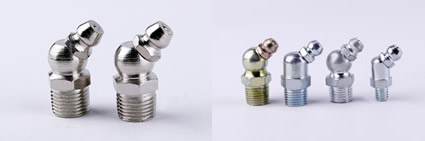

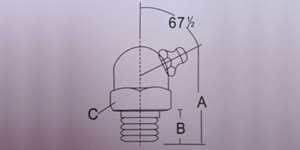

67.5 degree grease nipple
| thread | length | hex |
| PT1/8 | 21mm | 10mm |
| PT1/4 | 25mm | 14mm |
| NPT1/8 | 23mm | 11mm |

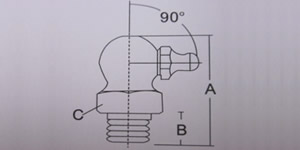

90 degree grease nipple
| thread | length | hex |
| PT1/8 | 23mm | 11mm |
| PT1/4 | 25mm | 14mm |

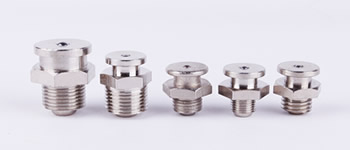

button head grease fitting
| thread | length | hex |
| PF 1/8×15 | 19mm | 17mm |
| PF 1/4×15 | 19mm | 17mm |
| PF 1/8×17 | 19mm | 17mm |
| PF 1/4×17 | 19mm | 17mm |
| PF 3/8×22 | 25mm | 22mm |
| PF 1/2×22 | 25mm | 22mm |
| M12×1.5 | 19mm | 17mm |
| PT 1/8×17 | 19mm | 17mm |
| PT 1/4×17 | 19mm | 17mm |
pin type greas fitting
| thread | length | hex |
| PT 1/8 | 29mm | 10mm |
| PT 1/4 | 29mm | 9mm |
| M10X1 | 25mm | 11mm |
| PT3/8 | 31mm | 17mm |
| PT 1/2 | 35mm | 22mm |
| PF 1/8 | 29mm | 9mm |
| PF 1/4 | 31mm | 9mm |
